VERY LARGE VOLUMES,LONG WORKING SHIFTS
6m³hopper and 6000kg payload is the relatively large capacity on the market, allowing long working shifts.
FOUR-WHEEL STEERS, GOOD GRADE
Sweeping and climbing over 20% full-load. The 4-wheel steering gives the M60 excellent manoevrability in all working conditions.
GOOD BALANCE, STABLE PERFORMANCE
Exclusive capability to sweep in unbalanced conditions(ex.sidewalks). The system allows to sweep on bumps with no operator’s action required.
LARGE RETENTION DUST FILTER, DUST-FREE OPERATION
Large retention dust filter to work dust-free in any situation, with filtration level available up to PM2.5(optional).
Network bus in the controller area, coordinating efficient running of all modules
The controller regional network bus from the automotive industry is featured by the high degree of reliability, sophistication and so on.
COMFORTABLE DRIVING,EASY TO OPERATE
Spacious and comfortable cabin with 3 homologated seats and user-friendly control..
| M60 ST | M60 CB | M50 G |
|
SWEEPING WIDTH |
with central roll-brush only | 1300mm | 1300mm | 1300mm |
| with central roll-brush and right-hand side brush | 2000mm | 2000mm | 2000mm | |
| with central roll-brush and 2 side brushes (standard) | 2700mm | 2700mm | 2700mm | |

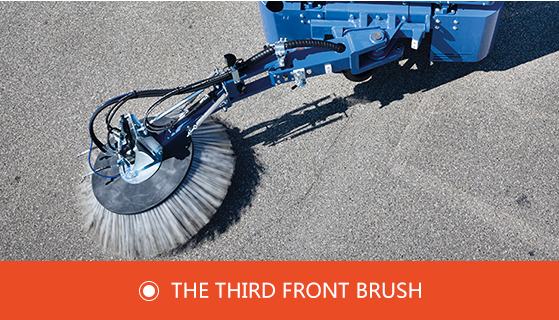

| with central brush, 2 side brushes and 3rd front brush (opt) | 3600mm | 3600mm | 3600mm | |
|
HOPPER AND WATER TANK |
Hopper volume | 6m³ | 6m³ | 4.5m³ |
| Net homologated payload | 6000Kg | 6000Kg | 3300Kg | |
| Hopper dumping height | 1.1m（opt，2.3m） | 1.1m（opt，2.3m） | 1.1m（opt，2.3m） | |
| Water tank capacity (with optional water spraying system) | 620L／（opt 1220L） | 620L／（opt 1220L） | 550L | |
|
ENGINE AND DRIVE SYSTEM |
Mercedes diesel engine Tier3 Intercooler water cooled | 110KW／147Hp | 110KW／147Hp | - |
|
Mercedes diesel engine Intercooler Euro5 AdBlue® water cooled |
130KW／174Hp | 130KW／174Hp | - | |
|
Mercedes diesel engine Intercooler Euro6 AdBlue® water cooled |
130KW／174Hp | 130KW／174Hp | - | |
| IVECO engine FTP Sofim 3.0 | - | - | 100KW／134Hp | |
| Driving system | hydrostatic | hydrostatic | hydrostatic | |
| Maximum speed | 42Km／h | 42Km／h | 42Km／h | |
| Maximum gradient full load | >20% | >20% |
>20% |
|
|
OTHER FEATURES |
Control system | Electric over hydraulic | CANBUS | CANBUS |
| Turning radius | 4430mm | 4430mm | 4430mm | |
| Steering system | 4-wheel power st. | 4-wheel power st. | 4-wheel power st. | |
| Full load weight (without/with 3rd front extendable brush) | 13250/13400Kg | 13250/13400Kg | 10950/11100Kg | |
|
Dimensions with 3rd front extendable brush (length x width x height) |
6120x2200x2900mm | 6120x2200x2900mm | 6120x2200x2900mm |
| MECHANICAL-SUCTION SYSTEM | |||
| The waste is collected by the mechanical action of the side (1) and central (2) brushes and the vertical loading conveyor(3). The suction (4) is only aimed at capturing the dust as soon as it’s raised up from the floor. The suction is optimized to allow the full suppression of dusts thanks to large surface filter(5). | |||
