PRODUCT INTRODUCTION

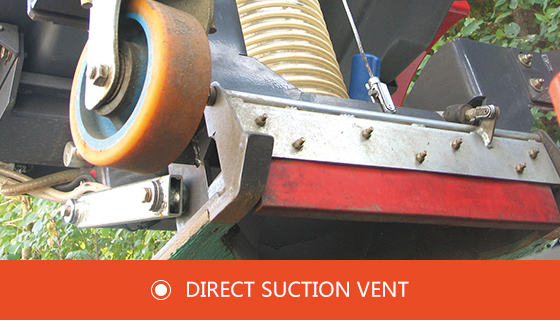

  Direct suction vent

Increases the suction power. It can be lifted up to 1.45m for dumping and to clear suction hose from eventual debris.

  Automatic suction vent lifting

Sution vent lifts up automatically in reverse, to avoid any damage hitting fixed objects (curbs,gutters,etc)

  Pre filter and inox filter

The two stainless steel dust filters can be cleaned easily and quickly without tools.

  Easy maintenance

With only one spanner it is possible to reach all the mechanical components and make inspection and maintenance easy and quick.

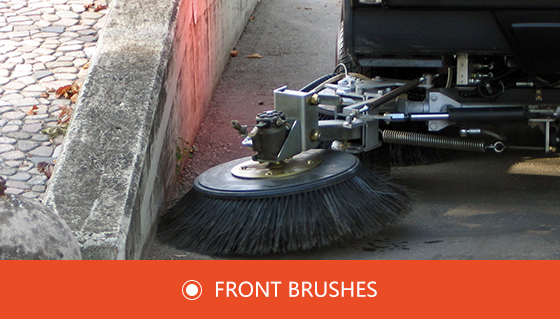

  Front brush protection

Front brushes (optional) have an anti-shock system to avoid damages in case of accidental knocks.

  Emptying

Can discharge into a normal road bins to work for longer without stopping.




TECHNICAL CHARACTERISTICS
TECHNICAL SPECIFICATIONS
  UNIT SW-III
Hourly performance m²/h 23000
Maximum cleaning width(with 2 side brushes) mm 1700
Maximum cleaning width(with 3 side brushes) mm 2000
Maximum cleaning width(with 4 side brushes) mm 2300
Hopper capacity lt 730(optional:1000,1250)
Hopper emptying m 1.45
Water tank lt 220(optional:280)
Engine   KUBOTA DIESEL
No.of cylinders   4
Cooling   WATER
Installed power HP/KW 34/25
Maximum speed Km/h 24
Traction   HYDROSTATIC REAR
Dimensions mm 2975*1300*1995
Weight Kg 1870

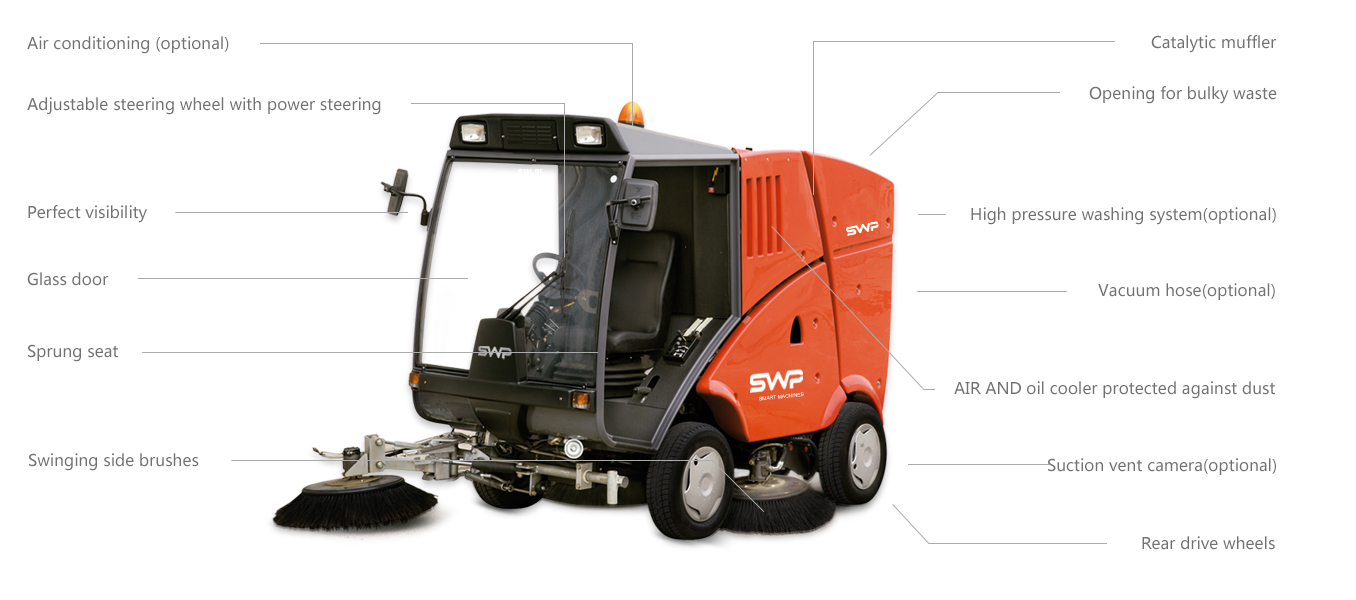

FUNCTION SHEET
1.3rd and 4th front side brushes 2.side brushes
3.vent 4.hopper
5.filters 6.vacuum fan
7.water tank 8.engine
